Corundum Mullite Composite High Temperature Ceramic Crucible For Melting Gold

Name: Corundum Mullite Composite High Temperature Ceramic Crucible For Melting Gold
Brand: HENGYUAN
Price: 1 USD

Buy cheap Corundum Mullite Composite High Temperature Ceramic Crucible For Melting Gold product

Brand Name : HENGYUAN

Model Number : Alumina Ceramic Crucible

Certification : CE,UL

Place of Origin : WUXI JIANGSU CHINA

MOQ : 100

Price : $1-$20

Payment Terms : L/C, T/T

Supply Ability : 5000 PCS/WEEK

Delivery Time : 20 DAYS

Packaging Details : Carton

Material : Alumina Ceramic Crucible

Color : Yellow Or White

Shape : Customization

Usage : Industry Usage

OEM，ODM : Acceptable

Orgin : WUXI JIANGSU CHINA

MOQ : 100 PCS

Package : Carton

Contact Now

Corundum Mullite Composite Alumina Ceramic Crucible

High-Performance Crucible for Industrial Analysis and Firing

Product Attributes

Attribute	Value
Material	Alumina Ceramic Crucible
Color	Yellow or White
Shape	Customization Available
Usage	Industrial Applications
OEM/ODM	Acceptable
Origin	Wuxi, Jiangsu, China
MOQ	100 PCS
Package	Carton

Product Description

The selection of premium raw materials for our alumina ceramic crucible directly impacts its performance and longevity. Utilizing high-performance refractory materials like mullite and corundum mullite enhances:

Refractory temperature capacity
Thermal conductivity efficiency
Structural stability during operation

These superior properties ensure optimal protection during ceramic firing processes, guaranteeing consistent product quality and maximum yield.

Technical Specifications

Material	Unit	A95% Alumina	A97% Alumina	A99% Alumina	A99.7% Alumina
Density	g/cm³	3.6	3.72	3.85	3.85
Flexural Strength	Mpa	290	300	350	350
Compressive Strength	Mpa	3300	3400	3600	3600
Modulus of Elasticity	Gpa	340	350	380	380
Impact Resistance	MPam1/2	3.9	4	5	5
Weibull Modulus	M	10	10	11	11
Vickers Hardness	HV0.5	1800	1850	1900	1900
Thermal Expansion Coefficient	10-6K-1	5.0-8.3	5.0-8.3	5.4-8.3	5.4-8.3
Thermal Conductivity	W/Mk	23	24	27	27
Thermal Shock Resistance	△T℃	250	250	270	270
Maximum Use Temperature	℃	1600	1600	1650	1650
Volume Resistivity at 20℃	Ω	≥1014	≥1014	≥1014	≥1014
Dielectric Strength	KV/mm	20	20	25	25
Dielectric Constant	εr	10	10	10	10

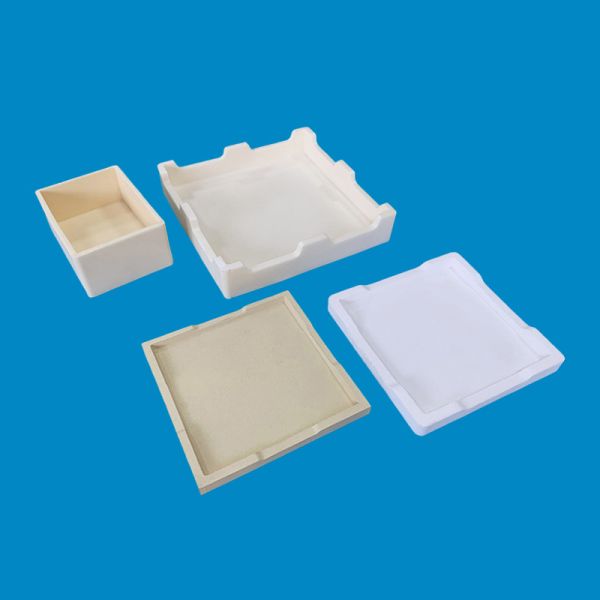

Product Images

Corundum Mullite Composite High Temperature Ceramic Crucible For Melting Gold
